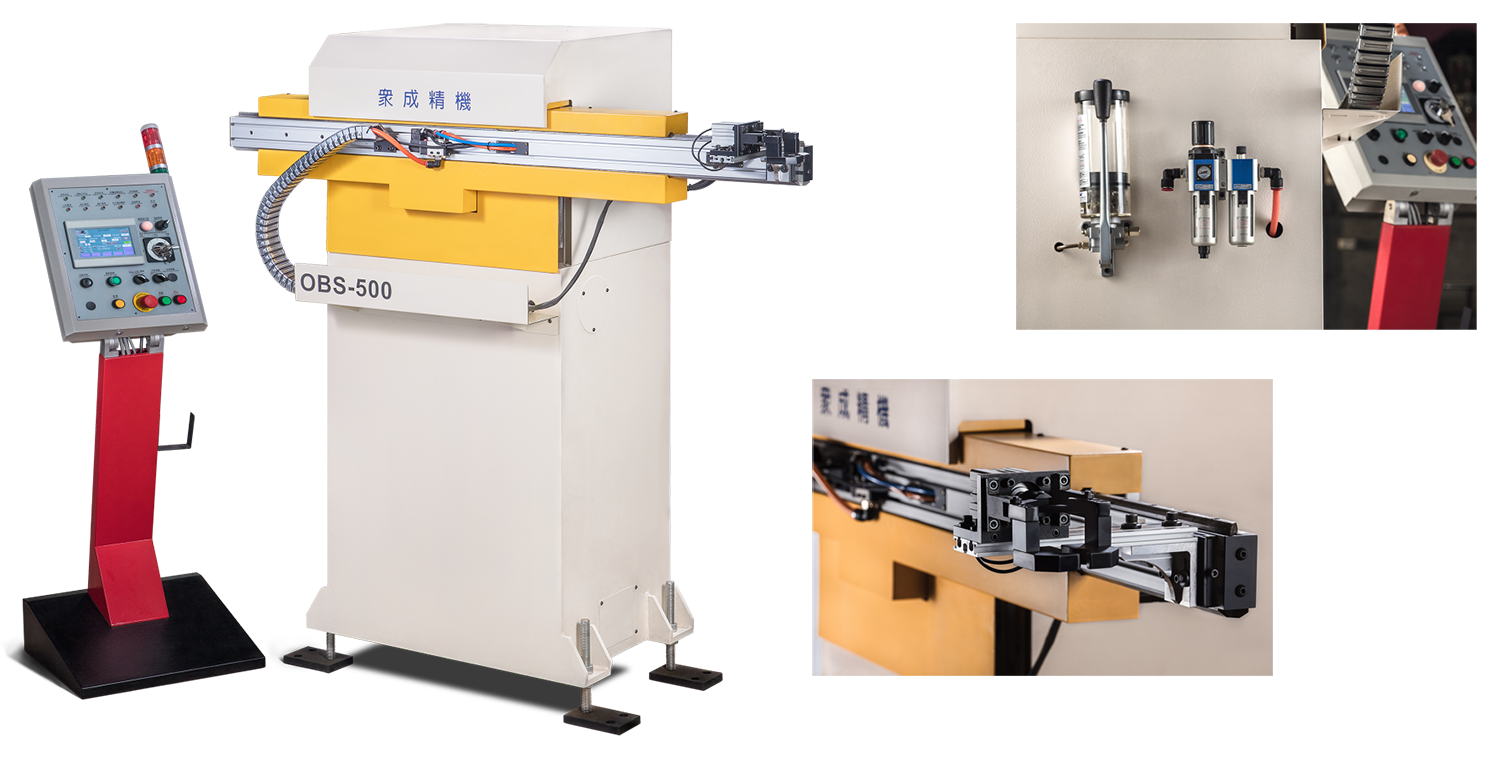

One bar system servo transfer OBS seriesHome > Product > One bar system servo transfer OBS series
Feature
- Mechanical action can secure stable quality, reduce faulty rate and features with high safety.
- PLC and touch the man-machine interface control system can directly view the operational status and exception monitoring, the stamping operation parameters can be entered through the man-machine interface, modify, easy to adjust the settings and simple maintenance.
- Fast feed, smooth movement and high precision positioning.
- Save labor & movement time, increase working efficiency.
- Servo controlled overload protection.
- Quick changing of finger.
- Vacuum pad as the standard handling element, electric magnet and pneumatic gripper as the option.
Specification
技術規格 (特殊規格可接受訂制)| 型號 | Model | OBS-200 | OBS-300 | OBS-450 | OBS-600 | OBS-900 |
| 移送行程 | Feed Stroke | 200 mm | 300 mm | 450 mm | 600 mm | 900 mm |
| 移送精度 | Feed Accuracy | ±0.3mm | ±0.3mm | ±0.3mm | ±0.3mm | ±0.3mm |
| 舉升行程 | Lift Stroke | 30~50mm | 30~50mm | 30~50mm | 30~50mm | 30~50mm |
| 移送驅動 | Feed Drive | AC Servo Motor | ||||
| 舉升驅動 | Lift Drive | AC Servo Motor | ||||
| 取料方式 | Pick Up Method | 真空吸盤／電吸鐵／夾爪 Vacuum Pad / Electromagnet / Gripper | ||||
*Specifications are subject to change for improvement without notice.
*Special specifications available for request.
